濟南保溫管的分類
Classification of Insulation Pipes in Jinan
鋼套鋼復合保溫管保溫構造根據滑動方式不同可分爲兩大類：
According to different sliding modes, the thermal insulation structure of steel-jacketed composite insulating pipe can be divided into two categories:
1、內滑動式：保溫構造由任務鋼管、硅酸鋁、減阻層、微孔硅酸鈣、隔熱層、不銹鋼緊固鋼帶、鋁箔反射層、聚氨酯保溫層、外套鋼管、外防腐層組成。內滑動型保溫鋼管是由保送介質的鋼管+復合硅酸鹽或微孔硅酸鈣+硬質聚氨酯泡沫塑料+外套鋼管+玻璃鋼殼防腐維護層構造構成。各種管件節點保溫處置技術成熟，質量牢靠。
1. Inner sliding type: Thermal insulation structure is composed of task steel pipe, aluminium silicate, drag reduction layer, micro-porous calcium silicate, thermal insulation layer, stainless steel fastening strip, aluminium foil reflective layer, polyurethane thermal insulation layer, coated steel pipe and external anti-corrosion layer. The inner sliding insulation steel pipe is composed of steel pipe with delivery medium, composite silicate or micro-porous calcium silicate, rigid polyurethane foam plastic, coated steel pipe and FRP shell anti-corrosion maintenance layer. All kinds of tubular joint heat preservation treatment technology is mature and the quality is reliable.
2、外滑動式：保溫構造由任務鋼管、玻璃棉保溫隔熱層、鋁箔反射層、不銹鋼緊固鋼帶、滑動導向支架、空氣保溫層、外護鋼管、外防腐層組成。
2. External sliding type: thermal insulation structure consists of task steel pipe, glass wool thermal insulation layer, aluminum foil reflective layer, stainless steel fastening belt, sliding guide bracket, air thermal insulation layer, external steel pipe and external anti-corrosion layer.

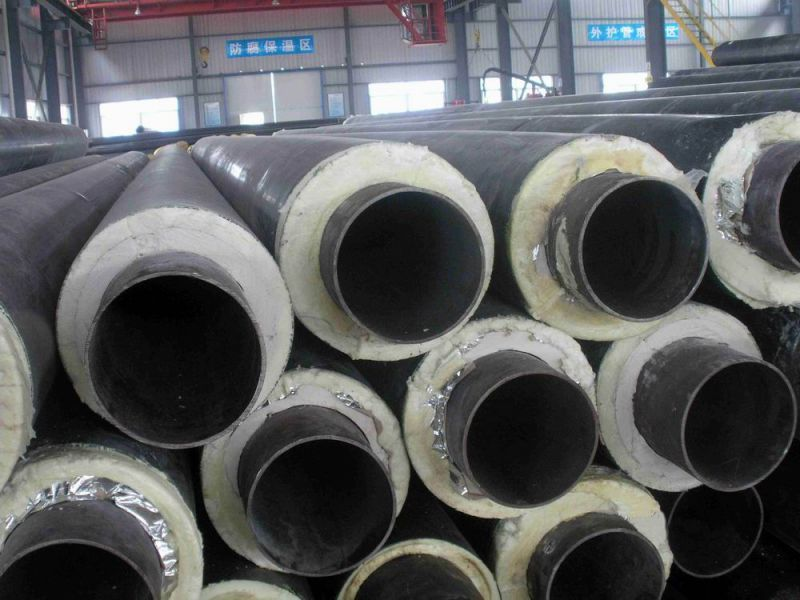

聚氨酯保溫管從里到外分三層構造：
Polyurethane insulating pipe has three layers from inside to outside.
一層：任務鋼管層
Layer 1: Task Steel Tube Layer
依據設計和客戶的要求普通選用無縫鋼管、螺旋鋼管和直縫鋼管。鋼管外表經過先進的拋丸除銹工藝處置后，鋼管除銹等級可達GB8923-1988規范中的Sa2級，外表粗糙度可達GB6060.5-88規范中R=12.5微米。
Seamless steel pipe, spiral steel pipe and straight seam steel pipe are generally selected according to design and customer requirements. After treatment by advanced shot peening rust removal process, the steel tube rust removal grade can reach Sa2 level in GB8923-1988 specification, and the surface roughness can reach R=12.5 micron in GB6060.5-88 specification.
第二層：聚氨酯保溫層：
Second layer: polyurethane insulation layer:
用高壓發泡機在鋼管與外護層之間構成的空腔中一次性注入硬質聚氨酯泡沫塑料原液而成，即俗稱的“管中管發泡”。
High-pressure foaming machine is used to inject rigid polyurethane foam plastics into the cavity formed between the steel pipe and the outer sheath at one time, which is commonly known as "tube-in-tube foaming".
第三層：高密度聚乙烯維護層：
Layer 3: High Density Polyethylene Maintenance Layer:
預制成一定壁厚的黑色或黃色聚乙烯塑料管材。其作用一是維護聚氨酯保溫層免遭機械硬物毀壞，二是防腐、防水。
Prefabricated black or yellow polyethylene plastic pipes with a certain wall thickness. Its function is to maintain the polyurethane insulation layer from the destruction of mechanical hard objects, and the second is anti-corrosion and waterproof.
