直埋保溫管如因不當心致使保溫受潮,應在吹掃及運轉前,選用低溫排潮法將保溫層內的水分掃除別的本公司出產的,環繞型玻璃鋼聚氨酯直埋管預制高溫復合聚氨酯直埋管,鋼套鋼直埋管,硅酸鋁瓦,板,聚氨酯瓦及離心玻璃棉,氈等幾種防腐保溫材料,供您選購。長期以來,本公司產物普遍運用于全國各地的工礦公司,石化公司,城市集中供熱,管網,住宅小區等范疇,均得到用戶的高度評價。
If the direct-buried insulating pipe is damped due to improper care, the moisture in the insulating layer should be swept away by low temperature dehumidification method before blowing and running. Otherwise, the company produces high-temperature composite polyurethane direct-buried pipe, steel-lined steel direct-buried pipe, aluminium silicate tile, board, polyurethane tile and centrifugal glass wool, felt, etc. A variety of anti-corrosion and thermal insulation materials for your choice. For a long time, our products have been widely used in industrial and mining companies, petrochemical companies, urban central heating, pipeline network, residential areas and other areas all over the country, and have been highly praised by users.
款式:由保送介質的鋼管,防腐外套鋼管以及鋼管與外套鋼管之間填充的超細玻璃棉組合而成。
Style: It is composed of steel pipe for delivery medium, anti-corrosion coat steel pipe and superfine glass wool filled between steel pipe and coat steel pipe.
特性:用鋼管做鋼管的維護層使產品具有強度高,不易損壞,承重量大的特性。
Characteristic: The steel pipe is used as the maintenance layer of the steel pipe, which makes the product have the characteristics of high strength, not easy to be damaged and heavy bearing capacity.
除中國外消費的直埋保溫管,均設有滲漏報警線,一旦管道某處發作滲漏,經過報警線的傳導,便可在專用檢測儀表上顯現出保溫管道滲水,漏水的精確位置及滲漏水平的大小,以便通知檢滲人員疾速處置漏水的管段,保證供熱管網的平安運轉。國內消費的保溫管道目前末設滲漏報警線,有待補上這一空白。
All direct-buried insulating pipes except those consumed in China are equipped with leakage alarm lines. Once leakage occurs somewhere in the pipeline and is transmitted by the alarm lines, the leakage of insulating pipes, the exact location of the leakage and the size of the leakage level can be displayed on the special testing instruments, so as to inform the inspectors to quickly dispose of the leakage pipelines and ensure the level of the heating network. Safe operation. At present, leakage alarm line has been set up in domestic thermal insulation pipelines, which needs to be filled in.
總之,保溫管不只具有傳統地溝和架空敷設管道難以比較的先進技術,適用性能,而且還具有顯著的社會效益和經濟效益,也是供熱節能的有力措施。采用直埋供熱管道技術,標志著中國供熱管道技術開展曾經進入了新的起點
In a word, thermal insulation pipe not only has advanced technology and applicability which is difficult to compare with traditional trench and overhead pipeline laying, but also has remarkable social and economic benefits. It is also a powerful measure of heating energy saving. The adoption of directly buried heating pipeline technology marks a new starting point for the development of heating pipeline technology in China.
可分為兩大類：
It can be divided into two categories:
1,內滑動式：保溫構造由工作鋼管,硅酸鋁,減阻層,微孔硅酸鈣,隔熱層,不銹鋼緊固鋼帶,鋁箔反射層,聚氨酯保溫層,外套鋼管,外防腐層組成。內滑動型保溫鋼管是由保送介質的鋼管 復合硅酸鹽或微孔硅酸鈣 硬質聚氨酯泡沫塑料 外套鋼管 玻璃鋼殼防腐維護層構造構成。各種管件節點保溫處置技術成熟,質量牢靠。
1. Inner sliding type: thermal insulation structure consists of working steel pipe, aluminium silicate, drag reduction layer, micro-porous calcium silicate, thermal insulation layer, stainless steel fastening strip, aluminium foil reflective layer, polyurethane thermal insulation layer, coated steel pipe, and external anti-corrosion layer. The inner sliding heat preservation steel pipe is composed of composite silicate or micro-porous calcium silicate rigid polyurethane foam plastic coat of steel pipe with anti-corrosion maintenance layer structure. All kinds of tubular joint heat preservation treatment technology is mature and the quality is reliable.
2,外滑動式：保溫構造由工作鋼管,玻璃棉保溫隔熱層,鋁箔反射層,不銹鋼緊固鋼帶,滑動導向支架,空氣保溫層,外護鋼管,外防腐層組成。
2. External sliding type: thermal insulation structure consists of working steel pipe, glass wool thermal insulation layer, aluminum foil reflector layer, stainless steel fastening belt, sliding guide bracket, air thermal insulation layer, external steel pipe protection layer and external anti-corrosion layer.
主要由四局部組成。
It mainly consists of four parts.
（1）工作鋼管：依據保送介質的技術請求分別采用有縫鋼管,無縫鋼管,雙面埋弧螺旋焊接鋼管。
(1) Working steel pipe: According to the technical requirements of delivery medium, seamless steel pipe, double-sided submerged arc spiral welded steel pipe are used respectively.
（2）保溫層：采用硬質聚氨酯泡沫塑料。
(2) Insulation layer: rigid polyurethane foam.
（3）維護殼：采用高密度聚乙烯或玻璃鋼。
(3) Maintenance case: high density polyethylene or glass fiber reinforced plastics.
（4）滲漏報警線：制造高溫預制直埋保溫管時,在靠近鋼管的保溫層中,埋設有報警線,一旦管道某處發作滲漏,經過警報線的傳導,便可在專用檢測儀表上報警并顯現出漏水的精確位置和滲漏水平的大小,以便通知檢修人員疾速處置漏水的管段,保證熱網平安運轉。
(4) Leakage alarm line: When manufacturing high-temperature prefabricated directly buried insulating pipe, an alarm line is embedded in the insulating layer near the steel pipe. Once leakage occurs somewhere in the pipeline and is transmitted by the alarm line, the alarm line can be used on the special detection instrument to show the exact position of leakage and the size of leakage level, so as to inform the maintenance personnel to deal with it quickly. Leakage section ensures safe operation of the heat network.

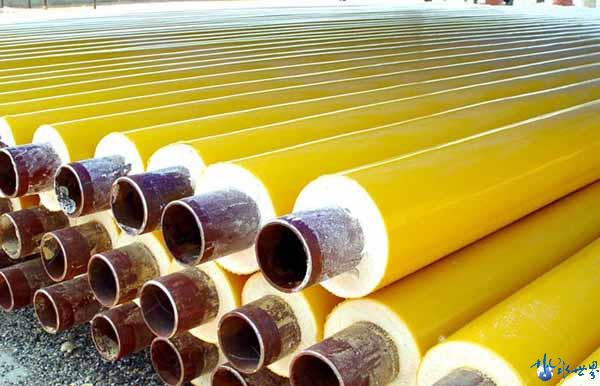

This is the content of the black jacket straight seam steel pipe http://www.weigh.cc. Thank you for checking our company's information during your busy schedule. If you want to know more, you are welcome to call for consultation!
